Splice Kits

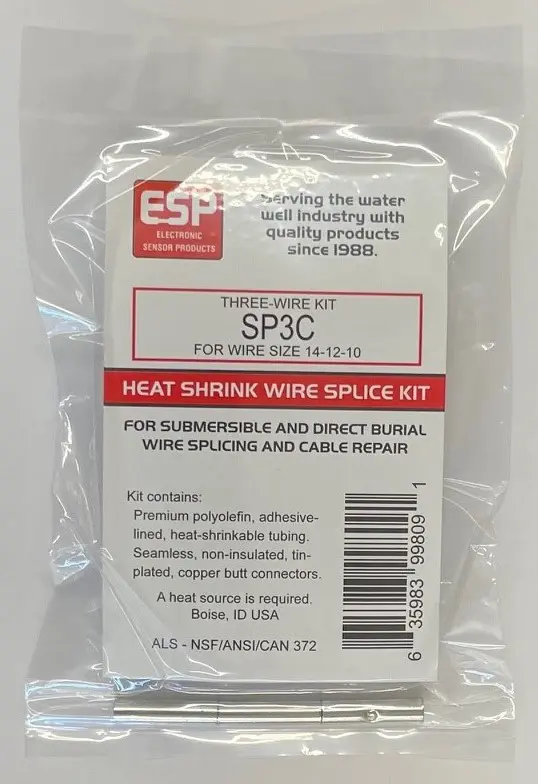

SP_C series kits are made with ESP’s "ETHC" medium wall clear tubing. These kits are available in 2, 3, and 4 wire kits for wire sizes #14 through #8. This tubing takes less time to shrink, making it the industry’s favorite.

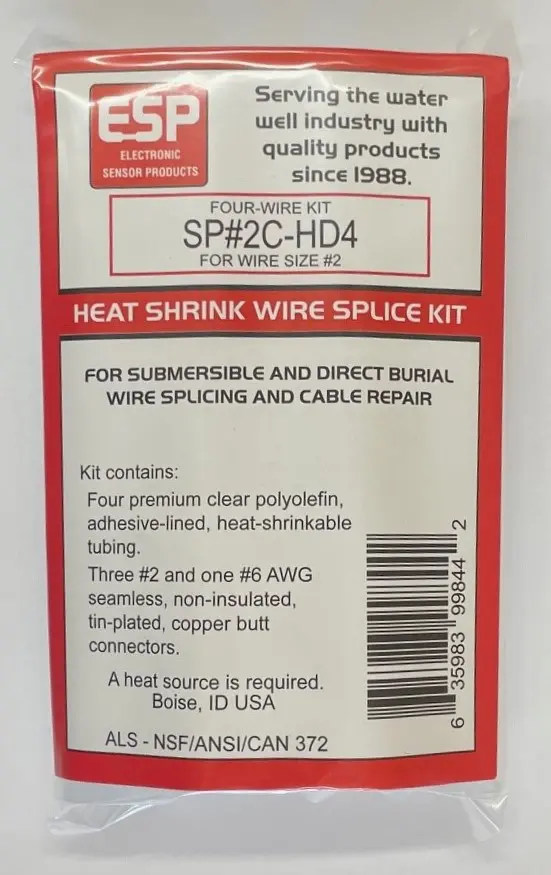

SP_C-HD series kits are made with ESP’s "ETHG-C" heavy wall clear tubing. These kits are available in 2, 3, and 4 wire kits for wire sizes #14 through #2. The tubing supplied in these kits contain extra adhesive and provides a heavier recovered outer wall thickness. These kits are recommended for application where a heavy-wall abrasion-resistant splice is required.
SP_B series kits are made with ESP’s "ETH" medium wall black tubing. These kits are available in 2, 3, and 4 wire kits for wire sizes #14 through #6. This tubing has a higher abrasion resistance than the clear tubing.
SP_B-HD series kits are made with ESP’s "ETST" heavy wall black tubing and are available in wire sizes #14 through 500 MCM. The tubing supplied in these kits contain extra adhesive and provides a heavier recovered outer wall thickness. These kits are recommended for application where a heavy-wall abrasion-resistant splice is required.

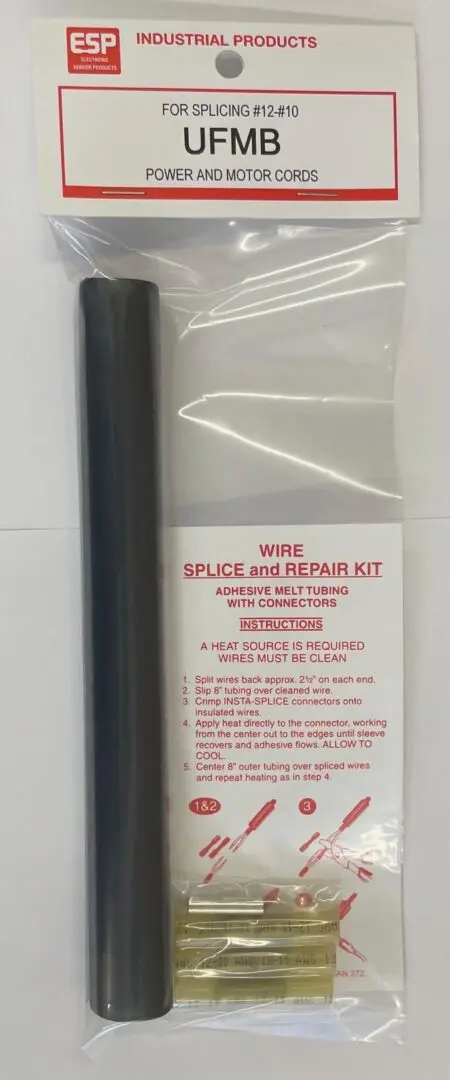

UFM series kits are designed for splicing U.F. wire and electric motor cords (above or below ground).
Heat Shrink Tubing
ETHC .440 our most popular tubing!
Clear Medium Wall adhesive tubing is the same high-quality tubing developed for ESP's quality splice kits SP2C through SP8C series. With its high shrink ratio of 3:1, it is extremely versatile to adapt to sealing wire sizes #14 through #6. The inner wall contains a heavy thermo-plastic adhesive that provides a permanent non-drying, waterproof seal.
ETH .440
Black medium wall adhesive tubing is the same high-quality used for ESP's quality splice kits SP2B through SP8B series. Due to its high shrink ratio of 4:1, it is extremely versatile to adapt to sealing wire sizes #14 through #6. The inner wall contains a heavy thermo-plastic adhesive that provides a permanent non-drying, waterproof seal.
ETHG-C .400, .750, 1.10
Heavy dual wall adhesive tubing is the same tubing used for ESP's quality splice kits SP2C-HD through SP#2C-HD series. This tubing is used in cable repair and splicing applications. It will provide an insulation thickness of at least required by IPCEA and NEMA specifications for cross-linked polyethylene insulated wire and cable. Provides greater split resistance, even when overheated, than competitor products.
ETST .400, .750, 1.10
Heavy dual wall adhesive tubing is the same high-quality tubing developed for ESP's quality splice kits SP2B-HD through SP#1/0-HD series. Provides greater split resistance, even when overheated, than competitor products.
Premium Connectors
Wire sizes from #22 thru 500 MCM
ALL CONNECTORS ARE
PACKAGED IN
RESEALABLE PACKAGING
ESP uses only premium seamless non - insulated butt connectors
By using ESP's quality connectors you will prevent wire splice failures caused by resistance between the wire and connector, when installed
All Connectors are UL Listed and are regarded as the best in the industry
ESP carries quality Wire Nuts for wire sizes #22 Through #6
Gaining popularity with pump installers is our silicon-filled wire nuts for use above ground or direct burial.
Pump installers choice!
ESP's premium terminals make electrical connections at the pressure switch and junction box effortless and time saving.
